I. Product Overview

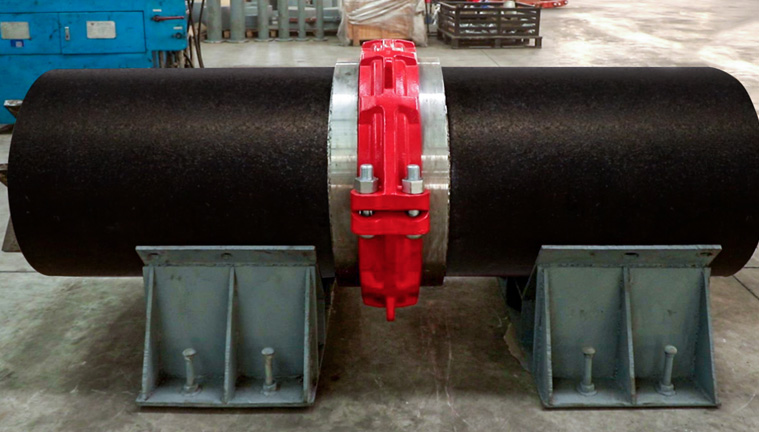

Ductile iron grooved pipe fittings and pipe clamps for mining are critical connecting components in mining pipeline systems. Manufactured from ductile iron material, they offer excellent properties such as high strength, corrosion resistance, and impact resistance. These products utilize grooved mechanical connection technology, providing an efficient and reliable solution for pipeline installation in the complex working conditions of mines.

II. Main Product Types

1. Grooved Pipe Fittings Series

• Rigid Couplings: Used for fixed pipeline connections, allowing no displacement or rotation

• Flexible Couplings: Permit a certain degree of pipeline displacement and deflection to accommodate ground settlement

• Mechanical Tees/Crosses: Used for pipeline branch connections

• Grooved Elbows: Available in various angles such as 30°, 45°, and 90°

• Concentric/Eccentric Reducers: For connecting pipes of different diameters

• Blind Flanges: Used to seal pipeline ends

2. Pipe Clamp Series

• Rigid Pipe Clamps: Fix pipeline positions and restrict displacement

• Flexible Pipe Clamps: Allow axial displacement of pipelines

• Seismic Pipe Clamps: Specially designed for earthquake-prone areas

• Suspension Pipe Clamps: Used for overhead pipeline installation

III. Material Advantages

1. High Strength: Tensile strength of ductile iron can reach 400-600 MPa, close to that of steel

2. Good Toughness: Elongation rate of 10-18%, capable of withstanding certain impacts

3. Corrosion Resistance: Superior to ordinary cast iron, especially suitable for humid mining environments

4. Wear Resistance: Surface can be specially treated to resist slurry abrasion

5. Cost-Effectiveness: Lower cost than stainless steel with high performance-to-price ratio

IV. Typical Mining Applications

1. Mine Drainage Systems

• Main drainage pipeline connections

• Emergency drainage systems

• Water sump inlet and outlet pipelines

2. Ventilation Systems

• Main ventilation pipeline connections

• Local ventilation equipment installation

• Pipeline connections around air doors

3. Backfill Systems

• Tailings delivery pipelines

• Backfill slurry transport pipelines

• Pipeline connections within backfill stations

4. Compressed Air Systems

• Air compressor discharge pipelines

• Underground compressed air pipelines

• Supply pipelines for pneumatic tools

5. Fire Protection Systems

• Main fire protection pipelines

• Fire protection branch connections

• Sprinkler system installations

6. Mineral Processing Plant Applications

• Ore slurry transport pipelines

• Reagent dosing pipelines

• Tailings discharge systems

V. Core Product Advantages

1. Quick Installation: Grooved connections are 3-5 times faster than traditional welding, reducing project timelines

2. Safety and Reliability: Tested to withstand 1.5-2.5 times working pressure

3. No Hot Work Required: Reduces safety risks in flammable mining environments

4. Adjustability: Allows ±5° angle deviation compensation

5. Easy Maintenance: Detachable and reusable, facilitating system modifications

6. Seismic Performance: Flexible connections absorb vibration energy

VI. Key Considerations for Selection

1. Pressure Rating: Select products according to system working pressure

2. Medium Characteristics: Consider the corrosiveness and abrasiveness of the conveyed medium

3. Environmental Conditions: Factors such as underground humidity and corrosive gases

4. Temperature Range: Generally suitable for -30°C to 120°C environments

5. Pipe Diameter Matching: Ensure fittings match pipeline specifications

6. Certification Requirements: Must comply with mining safety certification standards

VII. Installation and Maintenance Guidelines

1. Pipeline Preparation: Ensure pipe ends are smooth and burr-free, with properly machined grooves

2. Seal Installation: Correctly place rubber gaskets to avoid twisting

3. Bolt Tightening: Use a cross-tightening method to achieve specified torque

4. Regular Inspections: Recommend quarterly checks on bolt tightness

5. Gasket Replacement: Typically every 3-5 years or when aging is detected

6. Anti-Corrosion Treatment: Regularly inspect coating and reapply anti-corrosion paint if necessary

VIII. Market Development Trends

1. Material Upgrades: Development toward more corrosion-resistant materials like high-nickel ductile iron

2. Smart Monitoring: Integration of pressure and vibration sensors for condition monitoring

3. Lightweight Design: Reducing weight while maintaining strength

4. Standardization Improvements: Further alignment with international standards

5. Eco-Friendly Surface Treatments: Reduced use of polluting processes like electroplating

Ductile iron grooved pipe fittings and pipe clamps for mining, with their excellent performance and convenient installation features, have become the preferred connection method in modern mining pipeline engineering. They play an irreplaceable role in improving mining construction efficiency and ensuring the safe operation of pipeline systems.
