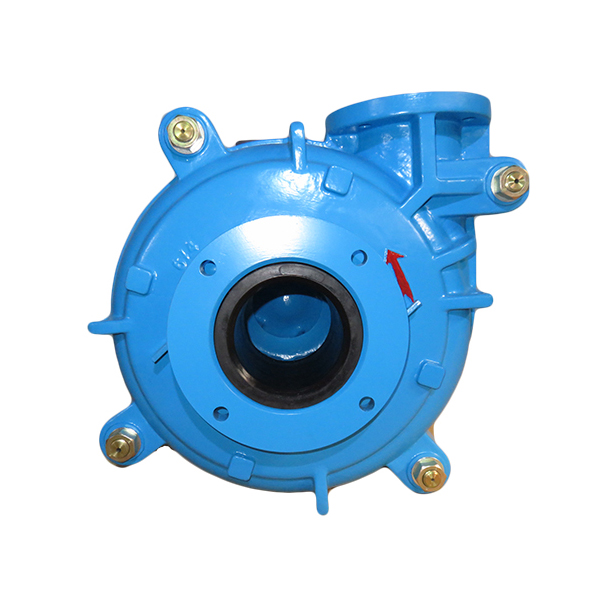

Heavy-duty slurry pumps are designed for a wide range of erosive and corrosive applications.They are generally used for slurries containing high concentrations of erosive solids or where anextremely heavy duty pump is required. Pumps are available both metal and rubber lined corrosion and abrasion resistant materials.
Payment :
TTProduct Origin :
ChinaColor :
BluaShipping Port :
TianjinLead Time :
20 days| SPECIFICATIONS | ||||||
| HORIZONTAL HEAVY-DUTY SLURRY PUMPS | Heavy-duty slurry pumps are designed for a wide range of erosive and corrosive applications.They are generally used for slurries containing high concentrations of erosive solids or where anextremely heavy duty pump is required. Pumps are available both metal and rubber lined corrosion and abrasion resistant materials. | |||||
| WORKING RANGE | Discharge Diameters - 1″ to 18″ (25mm to 450mm) Flow Rate to 5,040m3/h Head Range to 68 m |
|||||
| FEATURES | ||||||
| IMPELLERS | Various of metal and elastomer interchangeable. Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. | |||||
| LINERS | Various of metal and elastomer interchangeable. Easily replaceable liners are bolted, not glued to the casing for positive maintenance. | |||||
| THROATBUSH | Various of metal and elastomer interchangeable. Wear is reduced and maintenance simplified by the use of tapered. | |||||
| EXPELLER SEAL | Be available with low flow water flush or zero flow (grease lubricated) options to provide exceptional sealing where water introduction to the seal is intolerable or limited. | |||||
| STUFFING BOX | Gland sealing with packing and lantern ring. | |||||
| BEARING ASSEMBLY | Bearing assembly is adoptable of cylindrical structure, it is easy to adjust the space between impeller and front liner. Can be removed completely when repaired. Bearing assembly use grease lubrication. | |||||
| CASING | Casing halves of cast or ductile iron provides high operating pressure capabilities. | |||||
| BASE | A single piece base cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance. | |||||
| APPLICATIONS | Heavy Duty Slurry Pumps using for handing strong abrasive, high density slurries, high head slurries in the mining, metallurgical, coal, power, building material and other industrial units. | |||||
| Performance Data | |||||||||
| Pump | Material | Allowable Max. | Clear Water Performance | Impeller | |||||
| Model | Liner | Impeller | Power | Capacity Q | Head | Speed | Max | Impeller | |
| P(Kw) | H(m) | N(rpm) | Efficiency | D(mm) | |||||
| η(%) | |||||||||
| 1.5/1 AJ | M | M | 15 | 12.6--28.8 | 3.5-8 | 6--68 | 1200--3800 | 40 | 152 |
| RU | RU | 10.8--25.5 | 3--7 | 7--52 | 1400--3400 | 35 | |||
| 2/1.5 AJ | M | M | 15 | 32.4--72 | 9--20 | 6--58 | 1200--3200 | 45 | 184 |
| RU | RU | 25.2--54 | 45122 | 5.5--41 | 1000--2600 | 50 | 178 | ||
| 3/2 AJ | M | M | 30 | 39.6--86.4 | 45254 | 12--64 | 1300--2700 | 55 | 214 |
| RU | RU | 36--75.6 | 45220 | 13--39 | 1300--2100 | 55 | 213 | ||
| 4/3 AJ | M | M | 30 | 86.4--198 | 24-55 | 9--52 | 1000--2200 | 71 | 245 |
| RU | RU | 79.2--180 | 22-50 | 5--34.5 | 800--1800 | 59 | |||
| 6/4 AJ | M | M | 60 | 162--360 | 45-100 | 12--56 | 800--1550 | 65 | 365 |
| RU | RU | 144--324 | 40-90 | 12--45 | 800--1350 | 65 | |||
| 8/6 AJ | M | M | 300 | 360--828 | 100-230 | 10--61 | 500--1140 | 72 | 510 |
| RU | RU | 324--720 | 90-200 | 7--49 | 400--1000 | 65 | |||
| 10/8 AJ | M | M | 560 | 612--1368 | 170-380 | 11--61 | 400--850 | 71 | 686 |
| RU | RU | 540--1188 | 150-330 | 12--50 | 400--750 | 75 | |||
| 12/10 AJ | M | M | 560 | 936--1980 | 260-550 | 7--68 | 300--800 | 82 | 762 |
| RU | RU | 720--1920 | 200-450 | 7--45 | 300--650 | 80 | |||
| 14/12 AJ | M | M | 560 | 1260--2772 | 350-770 | 13--63 | 300--600 | 77 | 965 |
| RU | RU | 1152--2520 | 320-700 | 13--44 | 300--500 | 79 | |||
| 16/14 AJ | M | M | 1200 | 1368--3060 | 380-850 | 11--63 | 250--550 | 79 | 1067 |
| 20/18 AJ | M | M | 1200 | 2520--5400 | 700-1500 | 13--57 | 200--400 | 85 | 1370 |
e-MP high-pressure multi-stage pumps are used in mining, oil and gas, power plants, manufacturing industries, etc., cooling and heating systems, spray systems, washing and cleaning systems, fire protection systems, filtration systems, water delivery systems in industrial processes, Pressurization system, water treatment system.
Learn More
e-MP high-pressure multi-stage pumps are used in mining, oil and gas, power plants, manufacturing industries, etc., cooling and heating systems, spray systems, washing and cleaning systems, fire protection systems, filtration systems, water delivery systems in industrial processes, Pressurization system, water treatment system.
Learn More
Sand gravel pumps are designed to handle very large particles for gravel and dredging operations. Gravel pump is single-stage single-suction horizontal centrifugal pump, connected by belt. It is light, good anti-cavitation performance and easy to install.It is applied to conveying of sands, mud and slurry with bigger solid particles.
Learn More
Pumps are designed to produce high heads per stage at high pressures. Commonly used for long distance transport lines, the AJH lines can often satisfy application duties with a single pump where others require multiple pumps.The range is capable of handling medium size particles and pumping at heads in excess of 90 meters per stage.
Learn More
Heavy-duty slurry pumps are designed for a wide range of erosive and corrosive applications.They are generally used for slurries containing high concentrations of erosive solids or where anextremely heavy duty pump is required. Pumps are available both metal and rubber lined corrosion and abrasion resistant materials.
Learn More

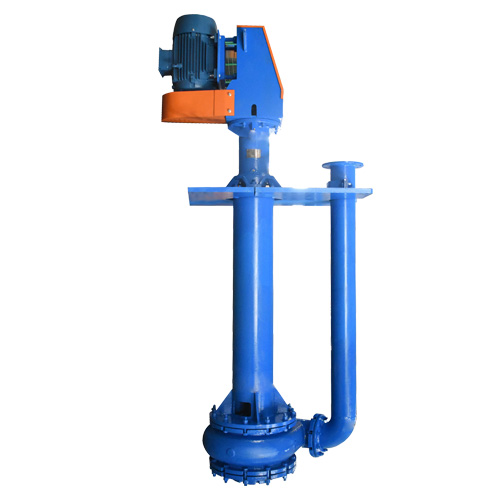

Vertical cantilevered sump slurry pump's design that features hard alloy wear parts or full elastomer protection on all submerged components. This allows this pump to be used in highly corrosive applications.
