e-MP high-pressure multi-stage pumps are used in mining, oil and gas, power plants, manufacturing industries, etc., cooling and heating systems, spray systems, washing and cleaning systems, fire protection systems, filtration systems, water delivery systems in industrial processes, Pressurization system, water treatment system.
Payment :
TTProduct Origin :
ChinaColor :
BluaShipping Port :
TianjinLead Time :
20 days
| SPECIFICATIONS | ||||||

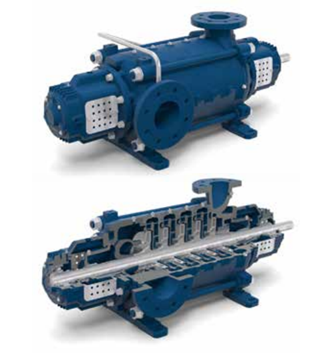

| e-MP HIGH PRESSURE MULTISTAGE PUMP | e-MP high-pressure multi-stage pumps are used in mining, oil and gas, power plants, manufacturing industries, etc., cooling and heating systems, spray systems, washing and cleaning systems, fire protection systems, filtration systems, water delivery systems in industrial processes, Pressurization system, water treatment system. | |||||
| SIZE | DN50 to DN150 | |||||
| FEATURES | ||||||
| CONFIGURATION | Horizontal | |||||
| FEATURES | Withstands high inlet pressure, optional drive end on suction side. | |||||
| POWER | 2 class: 7.5kW- 1,250kW/10hp- 1,700hp 4 class: 2.2kW- 160kW/3hp-220hp |
|||||
| HEAD | Up to 950m/3.100ft. | |||||
| FLOW RATES | Up to 850m³/h/3,740 US gpm. | |||||
| PUMPED LIQUID TEMPERATURE | (-25°C to +140°C, optional 180°C/ -13°F to +284°F, optional 356°F.) |
|||||
| INLET PRESSURE | Up to 40 bar /580 psi. | |||||
| SHAFT SEAL | Mechanical seals, cartridge mechanical seals, packing seals. | |||||
| BEARING | Suction side: radial ball bearing Discharge side: double row angular contact ball bearing. |
|||||
| CONNECTING PIPE | Suction side: 90° rotatable (left, top, right) Outlet side: radial, 90° rotatable (left, top, right) |
|||||
e-MP high-pressure multi-stage pumps are used in mining, oil and gas, power plants, manufacturing industries, etc., cooling and heating systems, spray systems, washing and cleaning systems, fire protection systems, filtration systems, water delivery systems in industrial processes, Pressurization system, water treatment system.
Learn More
e-MP high-pressure multi-stage pumps are used in mining, oil and gas, power plants, manufacturing industries, etc., cooling and heating systems, spray systems, washing and cleaning systems, fire protection systems, filtration systems, water delivery systems in industrial processes, Pressurization system, water treatment system.
Learn More
Sand gravel pumps are designed to handle very large particles for gravel and dredging operations. Gravel pump is single-stage single-suction horizontal centrifugal pump, connected by belt. It is light, good anti-cavitation performance and easy to install.It is applied to conveying of sands, mud and slurry with bigger solid particles.
Learn More
Pumps are designed to produce high heads per stage at high pressures. Commonly used for long distance transport lines, the AJH lines can often satisfy application duties with a single pump where others require multiple pumps.The range is capable of handling medium size particles and pumping at heads in excess of 90 meters per stage.
Learn More
Heavy-duty slurry pumps are designed for a wide range of erosive and corrosive applications.They are generally used for slurries containing high concentrations of erosive solids or where anextremely heavy duty pump is required. Pumps are available both metal and rubber lined corrosion and abrasion resistant materials.
Learn More
Vertical cantilevered sump slurry pump's design that features hard alloy wear parts or full elastomer protection on all submerged components. This allows this pump to be used in highly corrosive applications.
Learn More
Sump slurry pump is vertical single-stage single suction cantilevering centrifugal pump structure. The impeller is semi-open.There are mixing blades in the extension of suction part.
Learn More
