Sump slurry pump is vertical single-stage single suction cantilevering centrifugal pump structure. The impeller is semi-open.There are mixing blades in the extension of suction part.
Payment :
TTProduct Origin :
ChianColor :
BluaShipping Port :
TianjinLead Time :
20 days| SPECIFICATIONS | ||||||
| VERTICAL SUMP SLURRY PUMP | Sump slurry pump is vertical single-stage single suction cantilevering centrifugal pump structure. The impeller is semi-open.There are mixing blades in the extension of suction part. | |||||
| TYPE | eg: 80AJY80-20A AJY - slurry pump submerged in sump 80 – pump outlet diameter (mm) 80–pump design flow rate (m³/h) 20 –pump design head (m) A –Impeller first to be cut less |
|||||
| FEATURES | ||||||

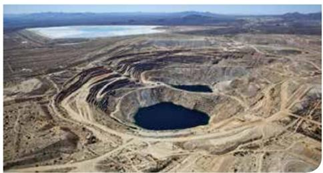

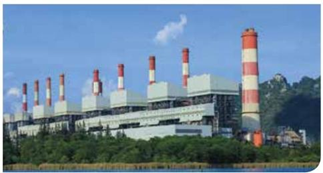

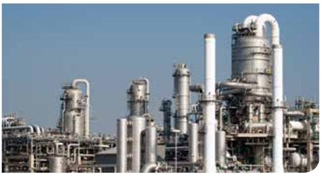

| APPLICATIONS | These series of pump can be used for environment protection, municipal engineering, thermal power station, coal coking plant, refineries, steel works, mining, paper industry, cement plants, food product factories and textile printing and so on. It can also be used for suction of thick liquid, viscous oil, dregs of oil, dirty liquid, slurry, mortar, quicksand, flow sludge in the city’s sewerage system, sediment fluid slag material and corrosive liquids. | |||||
| STRUCTURE SPECIFICATIONS | Vertical Sump Slurry Pump is the cantilever pump structure of single stage and single suction, with the bearing housing, supporting, intermediate pipe connecting the pump hydraulic components, the water is discharged out from the drain pipe parts, pump impeller is for semi-shrouded with the agitating vane on the vane extended, the main characteristic of this pump is the underwater pump shaft parts haveenough rigidity. The impeller and pump shell have no bearings,no shaft seal, which can transport the greater medium of solid particles. The length of inserting the water by pump is between 800 and 2500, the suction pipe can be matched in case of need.The shaft seal runs into the underwater pump without setting up the shaft seal,drive should be installed the vertical motor on the supporting seat connecting with coupling and pump. | |||||
| Clear Water Performance | |||||||
| Parameter | Capacity (Q) | Head | Speed | Max. | Model | Max. | |
| m3//h | l/s | H (m) | N(/rpm) | Power | Efficiency | ||
| P(Kw) | η (%) | ||||||
| 50AJY20-18 | 15 | 4.2 | 19 | 1430 | 3 | Y100L2-4 | 41 |
| 20 | 5.6 | 18 | 42 | ||||
| 25 | 6.9 | 17 | 45 | ||||
| 50AJY36-50 | 18 | 5 | 53 | 1470 | 22 | Y180L-4 | 28 |
| 36 | 10 | 50 | 34 | ||||
| 45 | 12.5 | 48 | 36 | ||||
| 50AJY36-50A | 16 | 4.4 | 44 | 1470 | 18.5 | Y180M-4 | 27 |
| 33 | 9.2 | 42 | 33 | ||||
| 41 | 11.4 | 40 | 35 | ||||
| 50AJY36-50B | 15 | 4.2 | 37 | 1460 | 15 | Y160L-4 | 26 |
| 30 | 8.3 | 35 | 33 | ||||
| 37 | 10.3 | 33.6 | 34 | ||||
| 80AJY80-20 | 48 | 13.3 | 22 | 1460 | 11 | Y160M-4 | 45 |
| 80 | 22.2 | 21 | 55 | ||||
| 96 | 26.7 | 18.5 | 53 | ||||
| 80AJY80-20A | 44 | 12.2 | 18.6 | 1460 | 11 | Y160M-4 | 43 |
| 73 | 20.3 | 17.5 | 53 | ||||
| 90 | 25 | 15.6 | 51 | ||||
| 80AJY80-20B | 39 | 10.8 | 16 | 1460 | 7.5 | Y132M-4 | 43 |
| 68 | 18.9 | 15 | 53 | ||||
| 80 | 22.2 | 13.4 | 51 | ||||
| 100AJY100-30 | 60 | 16.7 | 36 | 1470 | 22 | Y180L-4 | 41 |
| 100 | 27.8 | 31 | 54 | ||||
| 120 | 33.3 | 28 | 56 | ||||
| 100AJY100-30A | 75 | 20.8 | 30 | 1470 | 18.5 | Y180M-4 | 39 |
| 92 | 25.6 | 26 | 52.5 | ||||
| 110 | 30.6 | 24 | 54 | ||||
| 100AJY100-30B | 50 | 13.9 | 25 | 1470 | 15 | Y160L-4 | 38 |
| 85 | 23.6 | 22 | 52 | ||||
| 102 | 28.3 | 20 | 53 | ||||
| 100AJY120-60 | 72 | 20 | 61 | 1480 | 55 | Y250M-4 | 38 |
| 120 | 33 | 60 | 50.5 | ||||
| 144 | 40 | 56 | 52 | ||||
| 100AJY120-60A | 65 | 18 | 50 | 1480 | 45 | Y225M-4 | 36.5 |
| 108 | 30 | 49 | 49 | ||||
| 130 | 36.1 | 16 | 50 | ||||
| 100AJY120-60B | 59 | 16.4 | 41 | 1480 | 30 | Y200L-4 | 35.5 |
| 98 | 27.2 | 40 | 48 | ||||
| 118 | 32.8 | 37 | 49 | ||||
| 100AJY160-38 | 96 | 26.7 | 45 | 1480 | 45 | Y225M-4 | 43.8 |
| 160 | 44.4 | 39 | 52 | ||||
| 192 | 53.3 | 36 | 50.6 | ||||
| 100AJY160-38A | 88 | 24.4 | 38 | 1480 | 37 | Y225S-4 | 42.8 |
| 148 | 41.1 | 33 | 51 | ||||
| 177 | 49.2 | 30 | 49.5 | ||||
| 100AJY160-38B | 82 | 22.8 | 33 | 1480 | 30 | Y200L-4 | 43 |
| 137 | 38.1 | 28 | 52 | ||||
| 164 | 45.6 | 26 | 50 | ||||
| 150AJY250-40 | 150 | 41.7 | 44 | 1480 | 55 | Y250M-4 | 44 |
| 250 | 69.4 | 40 | 51 | ||||
| 300 | 83.3 | 38 | 52 | ||||
| 150AJY250-40A | 135 | 37.5 | 35 | 1480 | 45 | Y225M-4 | 43 |
| 225 | 62.5 | 32 | 50 | ||||
| 270 | 75 | 30 | 51 | ||||
| 150AJY250-40B | 120 | 33.3 | 28 | 1480 | 37 | Y225S-4 | 43 |
| 200 | 55.6 | 25 | 49 | ||||
| 240 | 66.7 | 24 | 50 | ||||
| 150AJY280-20 | 168 | 46.7 | 21 | 980 | 37 | Y250M-6 | 47 |
| 280 | 77.8 | 20 | 62 | ||||
| 336 | 93.3 | 16.5 | 57 | ||||
| 150AJY280-20A | 154 | 42.8 | 18 | 980 | 30 | Y225M-6 | 46 |
| 258 | 71.7 | 17 | 61 | ||||
| 310 | 86.1 | 14 | 56 | ||||
| 150AJY280-20B | 142 | 39.4 | 15 | 980 | 22 | Y200L2-6 | 45 |
| 237 | 65.8 | 14 | 60 | ||||
| 285 | 79.2 | 11 | 55 | ||||
| 200AJY460-35 | 276 | 76.7 | 38 | 1480 | 90 | Y280M-4 | 59 |
| 460 | 127.8 | 35 | 69 | ||||
| 552 | 153.3 | 33 | 64 | ||||
| 200AJY460-35A | 255 | 70.8 | 32.5 | 1480 | 75 | Y280S-4 | 58 |
| 426 | 118.3 | 30 | 67 | ||||
| 511 | 141.9 | 28.3 | 63 | ||||
| 200AJY460-35B | 235 | 65.3 | 27.5 | 1480 | 55 | Y250M-4 | 57 |
| 391 | 108.6 | 25 | 66 | ||||
| 470 | 130.6 | 23.8 | 62 | ||||
| 200AJY500-20 | 300 | 83.3 | 23 | 980 | 55 | Y280m-6 | 62 |
| 500 | 138.9 | 20 | 71 | ||||
| 600 | 166.7 | 18 | 67 | ||||
| 150AJY280-20 | 168 | 46.7 | 21 | 980 | 37 | Y250M-6 | 47 |
| 280 | 77.8 | 20 | 62 | ||||
| 336 | 93.3 | 16.5 | 57 | ||||
| 150AJY280-20A | 154 | 42.8 | 18 | 980 | 30 | Y225M-6 | 46 |
| 258 | 71.7 | 17 | 61 | ||||
| 310 | 86.1 | 14 | 56 | ||||
| 150AJY280-20B | 142 | 39.4 | 15 | 980 | 22 | Y200L2-6 | 45 |
| 237 | 65.8 | 14 | 60 | ||||
| 285 | 79.2 | 11 | 55 | ||||
| 200AJY460-35 | 276 | 76.7 | 38 | 1480 | 90 | Y280M-4 | 59 |
| 460 | 127.8 | 35 | 69 | ||||
| 552 | 153.3 | 33 | 64 | ||||
| 200AJY460-35A | 255 | 70.8 | 32.5 | 1480 | 75 | Y280S-4 | 58 |
| 426 | 118.3 | 30 | 67 | ||||
| 511 | 141.9 | 28.3 | 63 | ||||
| 200AJY460-35B | 235 | 65.3 | 27.5 | 1480 | 55 | Y250M-4 | 57 |
| 391 | 108.6 | 25 | 66 | ||||
| 470 | 130.6 | 23.8 | 62 | ||||
| 200AJY500-20 | 300 | 83.3 | 23 | 980 | 55 | Y280m-6 | 62 |
| 500 | 138.9 | 20 | 71 | ||||
| 600 | 166.7 | 18 | 67 | ||||
