Carbon Regemeration Kiln

Home /Carbon Regemeration Kiln /

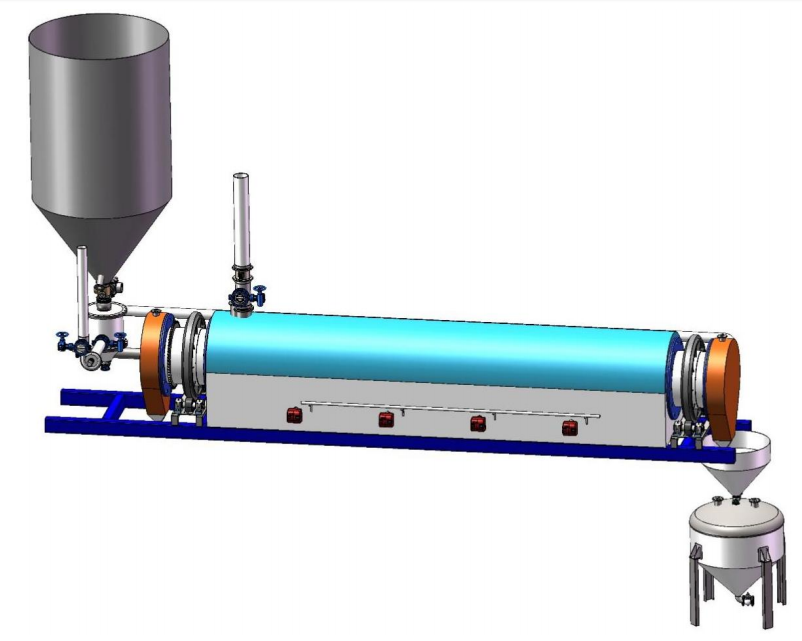

Carbon Regeneration Klin

Carbon Regeneration Klin

The oven type is divided into two types with the highest operating temperature of
800℃ and 1,000℃. The regeneration time is divided into the standard time and long
time. The processing capacity of different models and different times are shown in
Table 1: Processing Capacity Table of Different Specifications and Models.
Specification
(Model)
Processing capacity(kg/h)
Installed power(kw)
ZSL-60
60 60
ZSL-100
100 100
ZSL-150
150 150
ZSL-200
200 200
ZSL-300
300 300
ZSL-400
400 400
ZSL-500
500 500

Characteristics of our company's regeneration kiln:
1. Our company's kiln is installed horizontally and only needs to be placed on a
horizontal ground. The fixing method is simple, welding it to a steel platform or fixing
it with expansion bolts on a concrete floor. This is different from other companies' tilted
kilns.
2. The strength of the cylinder is particularly high, and it can keep the cylinder from
bending during sudden power outages in a hot state without the need to rotate it.
3. The material is not propelled by gravity, but by spiral blades, resulting in more
uniform heating of the material.
4. But it is still equipped with an emergency power supply EPS to provide power for the
burner fan and cylinder drive, ensuring the safety of the equipment and timely
discharge of hot materials.
5. Our company's regeneration furnace is equipped with a preheater, and the materials
are preheated at a temperature of 80-90 ℃ before entering the rotary kiln.
6.The burner is proportionally adjustable, making it easy to control the temperature.
  • Item No :

    ZSL-500
  • Order(MOQ) :

    1 SET
  • Payment :

    30% Deposit,70& balance against Original B/L
  • Product Origin :

    China
  • Color :

    Optional
  • Shipping Port :

    Shangdong
  • Lead Time :

    45-60days
  • Weight :

    20 ton



Main Parameters
1Design temperature:850℃
2Operating temperature:650750℃
3Furnace tube size and material:φ1.2m*12m*10mm253ma
4Heating section length:10m
5Heating method:4 Light oil ratio regulating burner, heat generation of 250000 kcal/h, 4 units of 4
6Temperature control method:PLC+ PID
7Number of temperature control groups:4 groups
8Temperature control accuracy:≤±2℃
9Drive power:5.5Kw
10Roller movement speed:0.32.5 revolutions per minute,continuously and infinitely adjustable 0.3~2.5
11Tilt angle of furnace body:horizontal installation
12Process atmosphere:oxygen deficiency
13Production capacity:500Kg/h
14Filling rate of materials in the cylinder:5-6﹪;
15Equipment dimensions:13*2.2*2.6m
