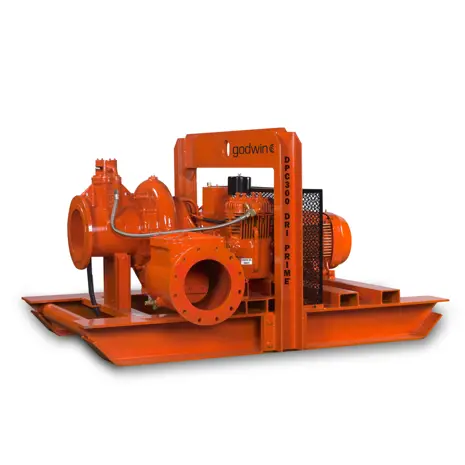

CD Series Godwin DPC300

CD Series Godwin DPC300

Overview


PRODUCT FEATURES

  • Dri-® automatic self-priming system
  • Simple maintenance limited to checking fluid levels and filters
  • Liquid bath mechanical seal for dry-running and reduced maintenance costs
  • Abrasion-resistant silicon carbide seal faces for trouble-free performance​

High Volume, Medium Head, Large Solids-Handling Capabilities for Construction Sites and General Dewatering





The Godwin Dri-Prime® DPC300 pump offers flow rates to 5,080 US GPM (​1,154 m³/hr) and has the capability of handling solids up to 3.7 in (95 mm) in diameter.

The DPC300 is able to automatically prime to 28 ft (8.5 m) of suction lift. Automatic or manual starting/stopping available with mounted control panel or optional wireless remote access.

Indefinite dry-running is possible with the exclusive Godwin liquid bath mechanical seal design. Solids handling, dry running and portability make the DPC300 the perfect choice for dewatering.



Available Options





  • Diesel engine, natural gas engine or electric motor driven
  • 316 or CD4MCu stainless steel pump-end construction for high- and low-pH applications
  • Highway trailer or skid mount, both incorporating integrated overnight running fuel tanks
  • Sound attenuated enclosure available
  • PrimeGuard controller with Field Smart Technology (FST)
