- Immersible Top Tank Solution
- Easy Repair
- Mechanical Seal Options
Taking reliability and performance to new depths
The e-SVI is an efficient, reliable, high-performance pump, comprised of an energy saving, vertical multistage pump coupled to a IEC high efficient motor. Plus, an immersible hydraulic end provides an ideal solution for top mount applications.
Industry-leading range, with flows up to 120 m³/h and sizes from 1 to 92, meets the demands of a wide variety of applications in the industrial, OEM and commercial building services markets.

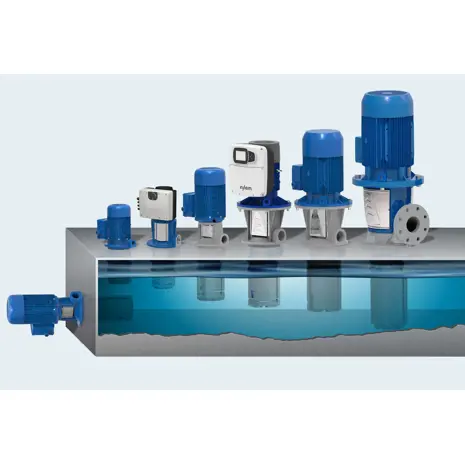

An immersible top tank solution
The e-SVI is specially designed to be mounted on the top of a tank, with the pump unit immersed in the liquid to be pumped. The length of the immersed pump unit can vary, depending on the solution your application requires.
Performance
- Industry-leading performance and range, with flows up to 120 m3/h, meet the demands of a wide variety of applications.
- The e-SVI range 1-22 features an inducer as part of our standard offering. The inducer helps protect against dry run and allows for reliable low-level pumping.
- An assortment of materials and configurations let you create the right pump for the job at hand.
- An all-316SS version is available, to handle aggressive liquids and more demanding applications.
- A compact close-coupled option is available in three sizes, for applications with limited overhead clearance.
- A drain-back-to-tank design feature that comes standard on close coupled configurations allows pumped liquid to return to the tank, which minimizes spillover.

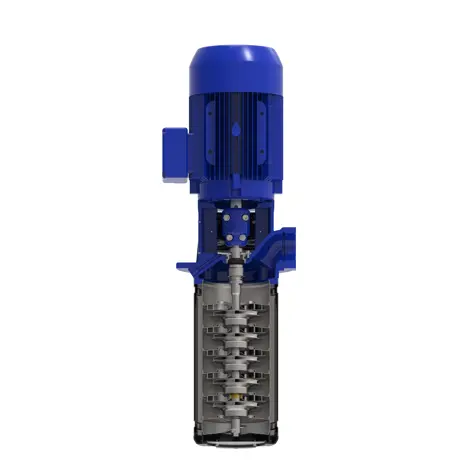

- The e-SVI can be built with a variable number of impellers, to cover a wide range of duty points.
- The e-SVI can be configured to allow an additional number of blank stages, so that the height of the immersed part can accommodate different suction depths.
Reliability
- Our pump experts ensure that your pump is optimized for your application and designed to deliver the longlasting, reliable service that you expect.
Efficiency
- Precision laser welded impellers reduce hydraulic losses and optimize pump efficiency.
- IEC high efficient motors, combined with the optimized hydraulic design of the e-SVI pump, reduce energy consumption and operating costs.
- Xylem Hydrovar® drives and IE5 efficient Smart Motors are available, to further improve the performance of the system.
Easy repair
- The mechanical seal (non-cartridge) can be replaced without removing the motor in sizes 33-92, to simplify repair and minimize downtime.
- The e-SVI is an interchangeable drop-in replacement for pumps with 1”1/4 or 2” Rp threaded fittings, or with DN80 compatible flange discharge connections.
- The reduced axial thrust design makes it possible to use motors with standard bearings. This allows easy selection of standard motors reducing cost and increasing availability

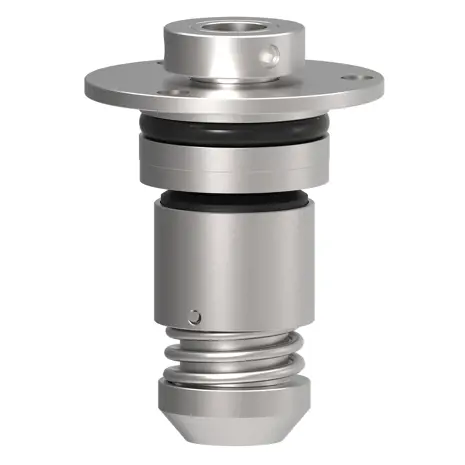

Mechanical seal options
- An assortment of mechanical seals and materials are available, which are designed to handle a wide range of temperatures, high pressures and aggressive liquids with ease.
- Easy-to-replace, pre-assembled cartridge seals are available, to help ensure correct assembly.
Versions
- e-SVI: standard IEC motor
- e-SVIE: Variable speed Smart Pump with ultra premium efficiency IES2 drive package including a permanent magnet IE5 motor (up to 2.2 kW)
- e-SVIH: Variable speed pump with Hydrovar pump controller (up to 22 kW)
- e-SVI hydrovar® X: Fully integrated variable speed solution (IES2) with assisted reluctance high efficient IE5 motor with built-in intelligence and communication (3kW to 22kW)
